SKU: 40470
1 / $5,396.00

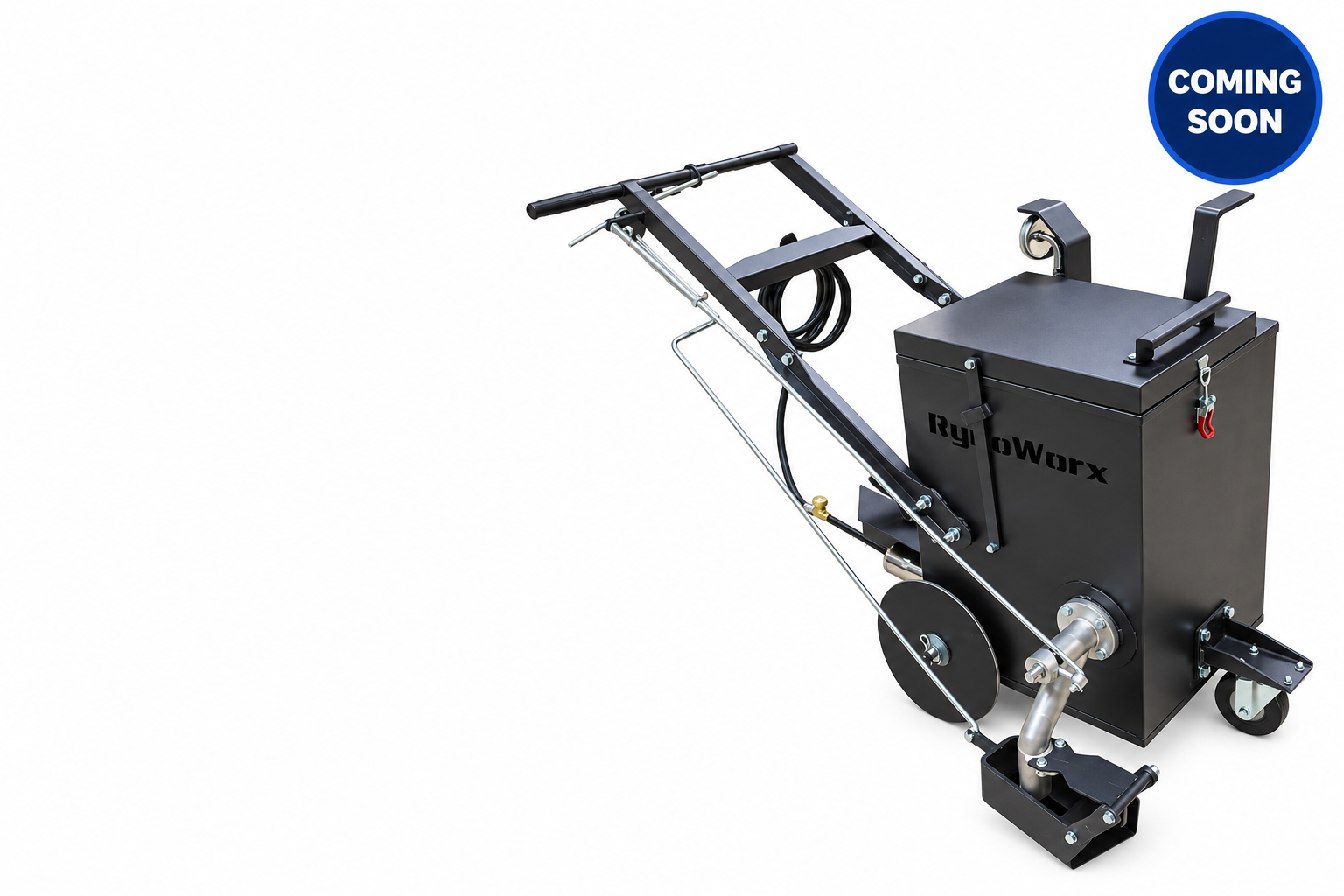

Heat, apply and smooth hot melt crack sealant with one practical, walk-behind machine.
The RynoWorx RY10 Base brings melting and application together, reducing the need to transfer hot sealant between a separate kettle and pouring equipment. Handlebar controls let the operator manage sealant flow and the finishing shoe while following the crack.
A practical addition to road maintenance and civil contracting fleets, the RY10 suits smaller work programmes, scattered repairs and jobs where a compact unit makes sense.
Model: RY10MA-V3 Base
Manufacturer part number: RA-MLT-0015
Heating: LPG
Brand: RynoWorx
Applications
For contractors and maintenance teams working across State Highways, Council Roads, Car Parks, Subdivisions, Industrial Yards, Commercial Sites.
Use for suitable pavement crack-sealing work, with the sealant and application method matched to the project specification.
Key Features & Benefits
Less handling between heating and application
Melt and dispense from the same unit, keeping the equipment and material together as you work.
Control as you walk
Handlebar controls operate the dispensing valve and finishing shoe, helping the operator manage placement and finish.
LPG heating
A direct-fire torch heats the sealant, with an adjustable regulator to control heat input.
Clear temperature monitoring
A liquid-filled thermometer helps the operator monitor material temperature during heating and application.
Manual agitation
Mix the material as it melts to distribute heat and maintain a consistent working condition.
A practical working setup
A steel frame, rear wheels with double ball bearings and a front caster support movement around the work area.
Technical Specifications
| Specification | Detail |
|---|---|
| Machine type | Walk-behind, direct-fire melter applicator |
| Model | RY10MA-V3 Base |
| Manufacturer part number | RA-MLT-0015 |
| Fuel | LPG or Propane Gas |
| Heating torch | 150,000 BTU/h — approximately 44kW |
| Published fluid capacity | 47.3 litres — 12.5 US gallons |
| Agitation | Manual |
| Dispensing valve | 31.8mm RynoValve |
| Temperature monitoring | Liquid-filled thermometer |
| Frame | Powder-coated steel |
| Empty weight | Approximately 65kg |
| Assembled dimensions | 1,247 × 699 × 932mm |
| Manufacturer-rated output | Up to approximately 122 linear metres per hour |
The RY10 is marketed as a 10-gallon model. Published fluid capacity is not a recommended operating fill level. Output varies with crack dimensions, preparation, heating, refilling and site conditions.
Hot Melt Crack Sealant
Order with NZ Brush SKU 40480 Hot Melt Crack Sealant.
-
Pack size: 12.5kg
-
Price: $78.40 + GST per pack — $90.16 including GST
-
Pallet pricing: Available by negotiation
Talk to NZ Brush about the material requirements and sealant quantity for your work programme.
Application Guidelines
- Prepare the site and cracks. Establish the required access controls and remove loose material, vegetation and dust. Cracks must be clean and dry.
- Set up the machine. Follow the operator manual for equipment checks, gas connection, loading and lighting.
- Heat and agitate. Monitor the thermometer and follow the sealant manufacturer’s heating and application limits.
- Apply and finish. Use the flow control and finishing shoe to place sealant along the prepared crack.
- Allow to cool. Reopen the area only when the material and site conditions permit.
- Shut down correctly. Follow the manual’s draining, shutdown and maintenance instructions.
For outdoor use with direct-fire-compatible sealant. Operators must follow the machine manual, sealant instructions and site procedures.
